Description
- Drücke: max. 45 bar
- Werkstoff: Zink-Druckguss
- nach DIN 3862
| Bestell-Nr. | Rohr Ø | d1 ¹) | d2 | d3 | d4 | l1 | l2 | l3 | SW |
|---|---|---|---|---|---|---|---|---|---|

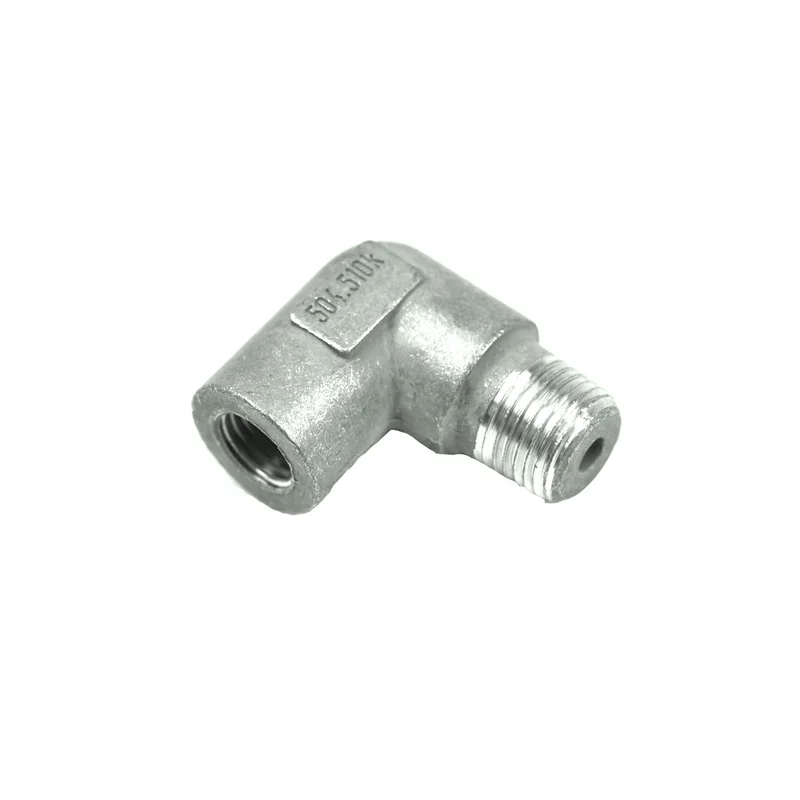

| 504-510K | 4 | M10x1 keg | M8x1 | 13 | 13 | 21 | 16 | 10 | 14 |
| 514-018K | 4 | R 1/8 keg | M8x1 | 13 | 13 | 21 | 16 | 10 | |
| 506-508K | 6 | M8x1 keg | M10x1 | 12,5 | 14 | 18 | 18 | 14,5 | |
| 506-510K | 6 | M10x1 keg | M10x1 | 12,5 | 14 | 18 | 18 | 10,5 | |
| 506-512K | 6 | M12x1 keg | M10x1 | 12,5 | 14 | 18 | 18 | 10,5 | |
| 508-512K | 8 | M12x1 keg | M14x1,5 | 14 | 19,5 | 19,5 | 24 | 10,5 | |
| ¹) Zapfengewinde nach DIN 158 keg kurz, bzw. nach DIN 2999 |
